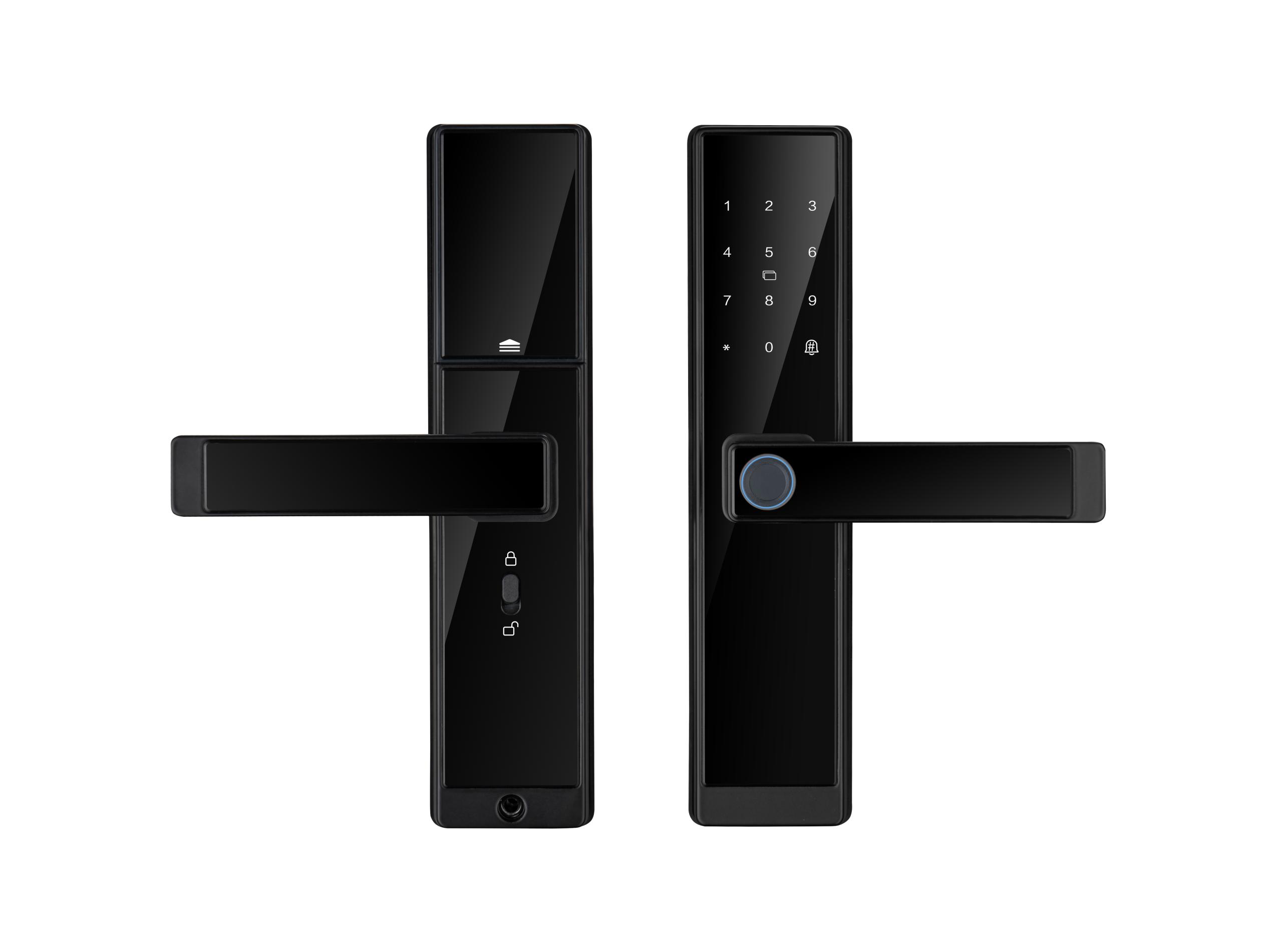

HH-X7 Fingerprint Keypad Smart Door Lock

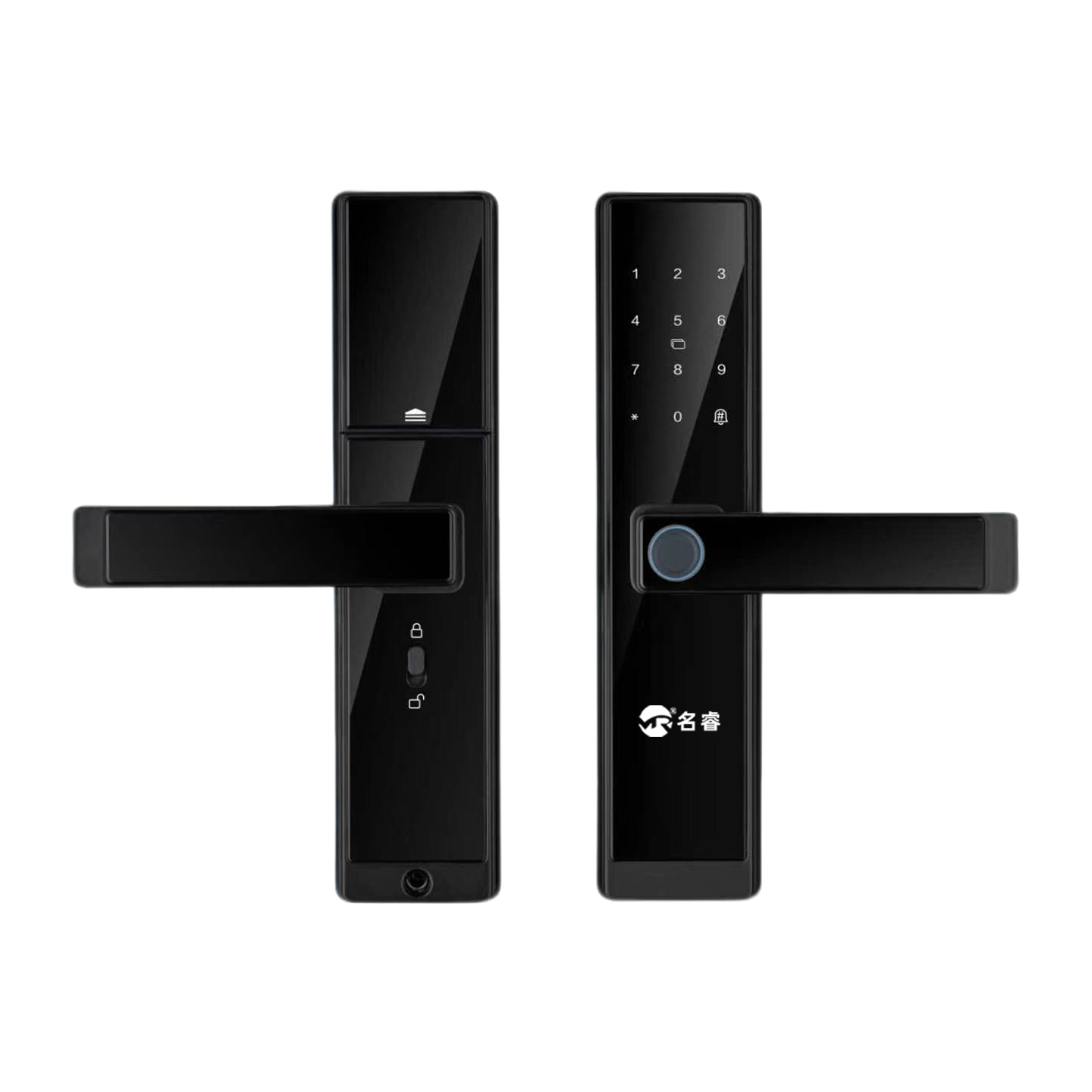

HH-X7 Fingerprint Keypad Smart Door Lock - Image 2
Category:

KEY SPECIFICATIONS

Specifications may vary by region. Please confirm with our sales team.

Material
Aluminum Alloy
Available Color
Matte Black
Unlock Methods
Fingerprint / Password / IC Card / Mechanical Key / Temporary Password / App (Optional) / Remote Unlocking (Optional)
Working Temperature
-10°C–60°C
Power Supply
4 × AAA Batteries (6V)
Carton Size
57 × 34.5 × 39 cm / 10 sets
Fingerprint Capacity
≤50
Carton Weight
14.75 kg / 10 sets
Password Capacity
≤100
Product Size
250 × 56 mm
Card Capacity
≤100
Lock Weight
1.40 kg including color box, excluding lock body

FEATURE DETAILS

Explore the key access and security functions of this model.

01Palm Vein RecognitionBiometric access

Supports palm-vein authentication as an available unlocking method.

02Fingerprint UnlockingFingerprint access

Supports fingerprint unlocking. Fingerprint capacity: ≤50.

03Password UnlockingPIN-based access

Supports the listed password-based access method. Password capacity: ≤100.

04Card AccessCard access

Supports card-based unlocking. Card capacity: ≤100.

05Mechanical KeyPhysical key access

Mechanical key access is listed for this model.

06Emergency ChargingEmergency power

Includes the listed emergency power connection.

07App ControlApp connection

App-based access is listed for this model.

08Remote UnlockingConnected access

Remote Unlocking is listed for this model.

TECHNICAL SPECIFICATIONS

Technical parameters for this model.

Rated Voltage
6V
RFID Protocol
ISO14443A
Standby Current
<70 μA
Supported Card Type
M1 IC Card
Working Current
<400 mA
Button Type
Capacitive Touch Keypad
Low Voltage Alarm
4.8V ±0.1V
Relative Humidity
20%–93%
Emergency Power Interface
5V Type-C
Password Length
6–12 digits
RFID Frequency
13.56 MHz
Recognition Speed
≤0.5 s
